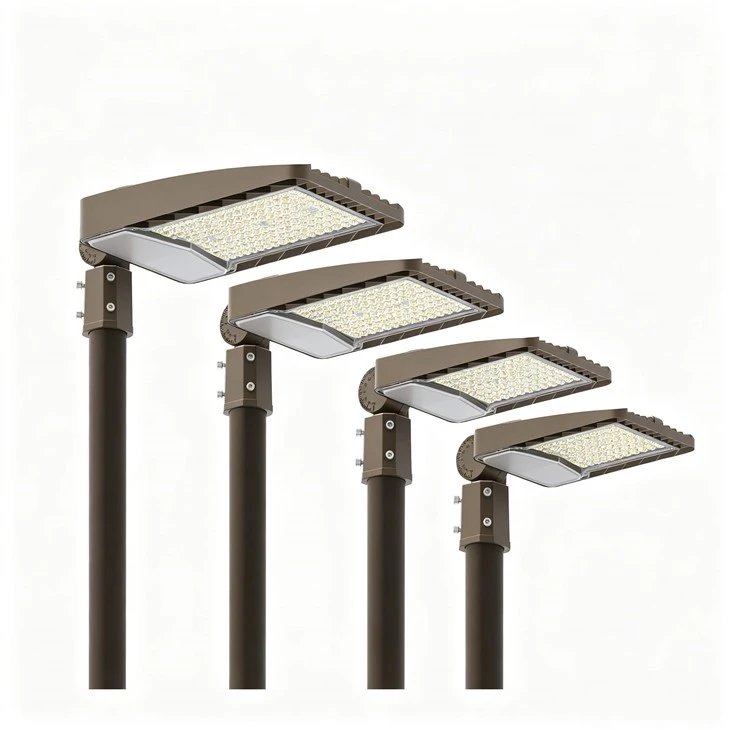

LED Shoebox Light Fixture 100W 300W IP66 Waterproof Commercial Outdoor Parking Light
video
LED Shoebox Light Fixture 100W 300W IP66 Waterproof Commercial Outdoor Parking Light

LED Shoebox Light Fixture 100W 300W IP66 Waterproof Commercial Outdoor Parking Light

This durable shoebox light fixture offers reliable high-efficiency outdoor illumination. Built with IP66 weather-resistant aluminum housing, it supports versatile mounting ways, perfectly suited for parking lots, roadways and other commercial outdoor lighting applications.

Description

Features



1. Commercial High-Efficiency Lighting: Brand CRI80 LED beads, 150lm/W high efficacy, 3CCT adjustable, 94% high transmittance UV lens, our LED shoebox light fixture 100W-300W is suitable for parking lots, roads, and sports field projects

2. IP66 Outdoor Durable Housing: High-purity ADC12 die-cast aluminum casing, operates stably in a wide temperature range of -35°C to 50°C, with a lifespan of 50,000 hours, reducing customer after-sales costs

3. Global wide-voltage waterproof drive: Multi-specification universal voltage, no additional voltage adjustment accessories required for cross-border bulk shipments

4. Four types of mounting brackets + four power levels: Suitable for wall and pole installation, flexibly adapting to various engineering solutions

5. Exclusive Support for Distributors: 5-year warranty, small-batch trial orders, OEM customization, free optical design, and one-stop supply with multiple trade terms.

shoebox light fixture

led shoebox light

Technical parameters



Product Name

LED shoebox light fixture Waterproof Commercial Outdoor Parking Lot Light

Housing Material & Process

Die-casting technology, ADC12 aluminum alloy with 92% purity

Specification Item

100W

150W

200W

300W

Luminous Flux(lm/W)

150lm/W

Light Source Chip

Top brand chips, high brightness & high CRI, energy saving

Driver

Top brand waterproof driver, IP66 rated

Beam Angle Type

Type III, Optional beam angles available

Input Voltage

AC100-277V/AC120-347V/AC277-480V

Lens Specification

Anti-UV lens, transmittance up to 94%

CCT

3000-6500K / 3CCT Adjustable

CRI

80

IP Rating

IP66

Lifespan (H)

50000

Operating Temperature (℃)

-35℃-+50℃

Operating Humidity Range

0%-85%

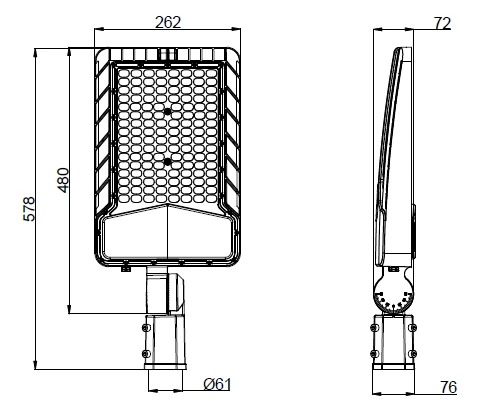

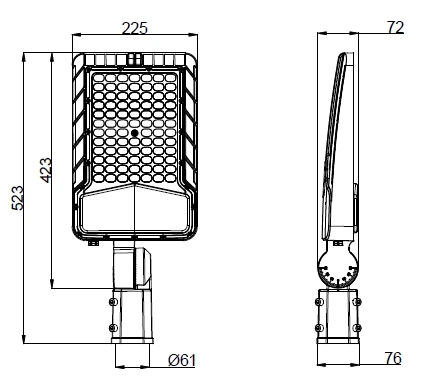

Dimension



dimension of shoebox light fixture

dimension of led shoebox light

dimension of led shoe box light

dimension of led shoebox fixture



Mounting Bracket Accessories

Slip fitter mounting bracket for LED street light

product-2048-2048

Straight arm mounting bracket for area light Round pole mounting bracket for LED street light

Installation



Multiple installation options are available for this shoebox light fixture, to satisfy diverse on-site project requirements:

shoebox Light Fixture slip‑fitter mount for round pole Shoebox Light Fixture square pole mount installation drawing

Shoebox Light Fixture side arm pole mounting illustration

Yoke Trunnion Wall‑Mount Installation



1. Slip-fitler: Slip‑fitler: Designed for direct mounting onto round light poles, enables flexible angle adjustment for targeted lighting coverage of LED light.



2. Square Pole Bracket: Custom fit for square poles, delivers stable and firm installation for pole‑mount scenarios.



3. Round Pole Bracket: Suitable for installation on round poles, provides reliable fixing solution for outdoor pole-mount projects.


4. Yoke Mounting: Also known as trunnion mount, supports wall-mount installation, ideal for mounting onto building walls and vertical facades.



Application

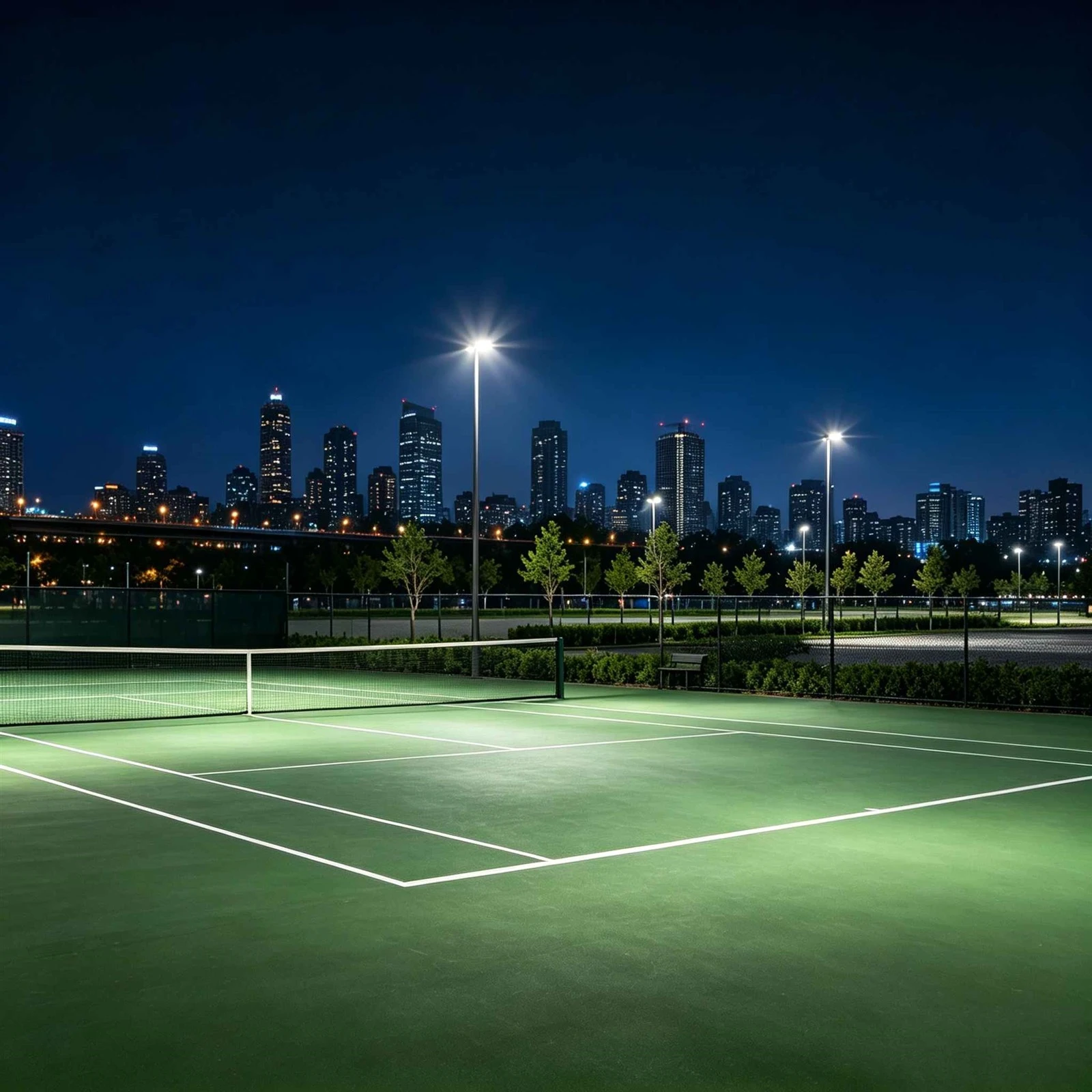

application of shoebox parking lot lights application of shoe box with lights app.kcation of led shoe box light
  • Parking lot:Delivers bright, even illumination to large‑area parking lots for safe nighttime use.
  • Building exterior:Provides steady outdoor lighting for building surroundings and commercial premises.
  1. Sports court:Creates sufficient uniform lighting to meet night‑time sports venue lighting demands.
