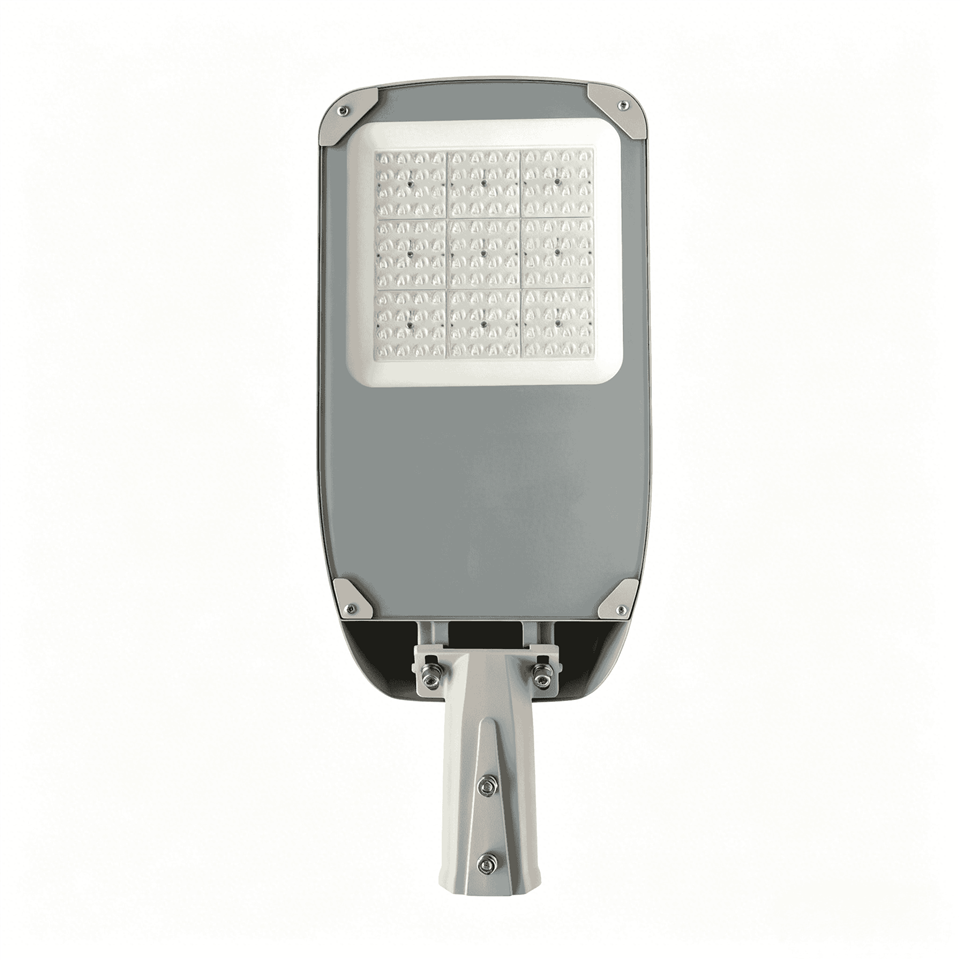

Waterproof LED Street Light European Style IK08 IK09 Outdoor Road Lighting
video
Waterproof LED Street Light European Style IK08 IK09 Outdoor Road Lighting

Waterproof LED Street Light European Style IK08 IK09 Outdoor Road Lighting

This waterproof LED street light comes in a simple European style with IP66 protection and IK08 impact resistance. It supports optional light control, is available in black and gray, and can be upgraded to IK09 with thicker glass. With high efficacy and long lifespan, it is ideal for outdoor road lighting and street renovation projects.

Send Inquiry
Download
Description

Features



  1.  Simple European style LED street light with cost-effective design, easy installation and wide compatibility.
  2. IP66 waterproof LED street light with IK08 impact resistance, glass panel can be upgraded to IK09 for stronger protection.

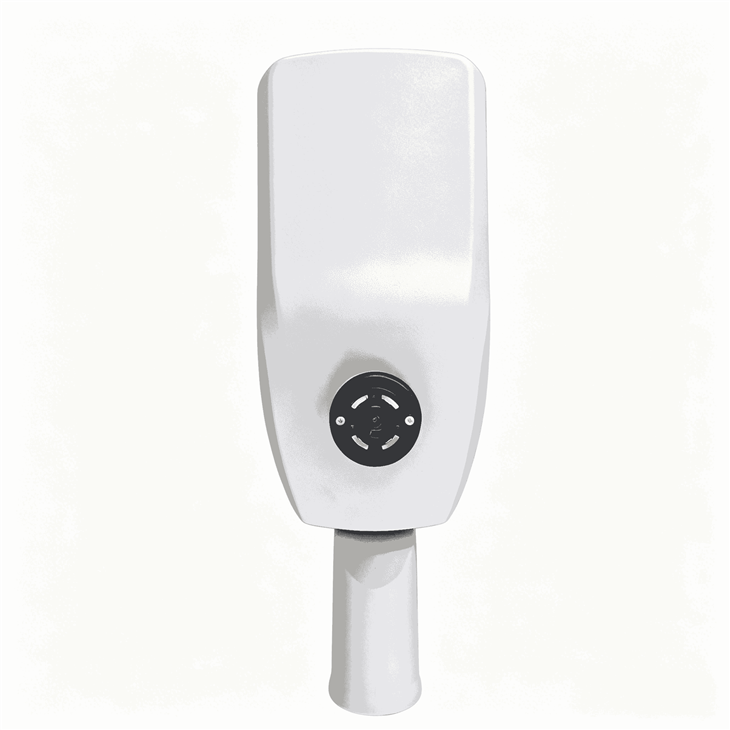

  3. Optional light control function, stable performance with wide voltage AC100-277V, high energy saving efficiency.
  4. Black and gray color options, long lifespan up to 50,000 hours, perfect for outdoor road lighting projects.

product-1280-1920



Technical parameters



Part 1: Basic Electrical Parameters

Power Input Voltage Frequency Power Factor Lighting Effect Lighting Effect CRI
30W–80W AC100–277V 50/60Hz >0.95 140–195 lm/W 50000H >70
100W–120W AC100–277V 50/60Hz >0.95 140–195 lm/W 50000H >70
150W AC100–277V 50/60Hz >0.95 140–195 lm/W 50000H >70
200W AC100–277V 50/60Hz >0.95 140–195 lm/W 50000H >70



Part 2: Environmental & Structure Parameters

Color Temperature IP Rating IK Rating Operation Temp Storage Temp Lens Material Size (mm)
2200K–6500K IP66 IK08 -30℃~+50℃ -20℃~60℃ PC Lens 520×190×67
2200K–6500K IP66 IK08 -30℃~+50℃ -20℃~60℃ PC Lens 581×230×67
2200K–6500K IP66 IK08 -30℃~+50℃ -20℃~60℃ PC Lens 612×240×68
2200K–6500K IP66 IK08 -30℃~+50℃ -20℃~60℃ PC Lens 661×265×68

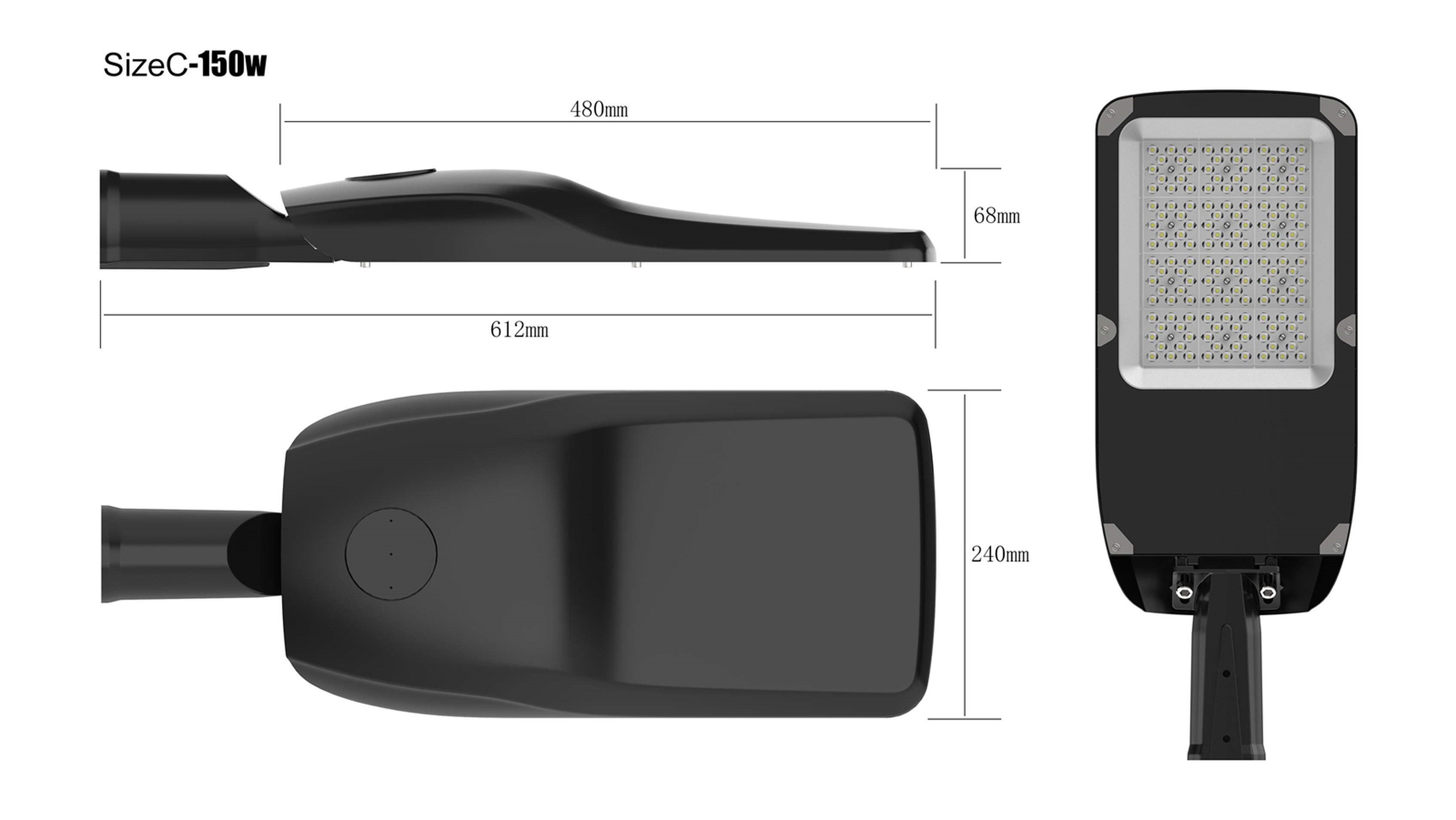

Product Dimension

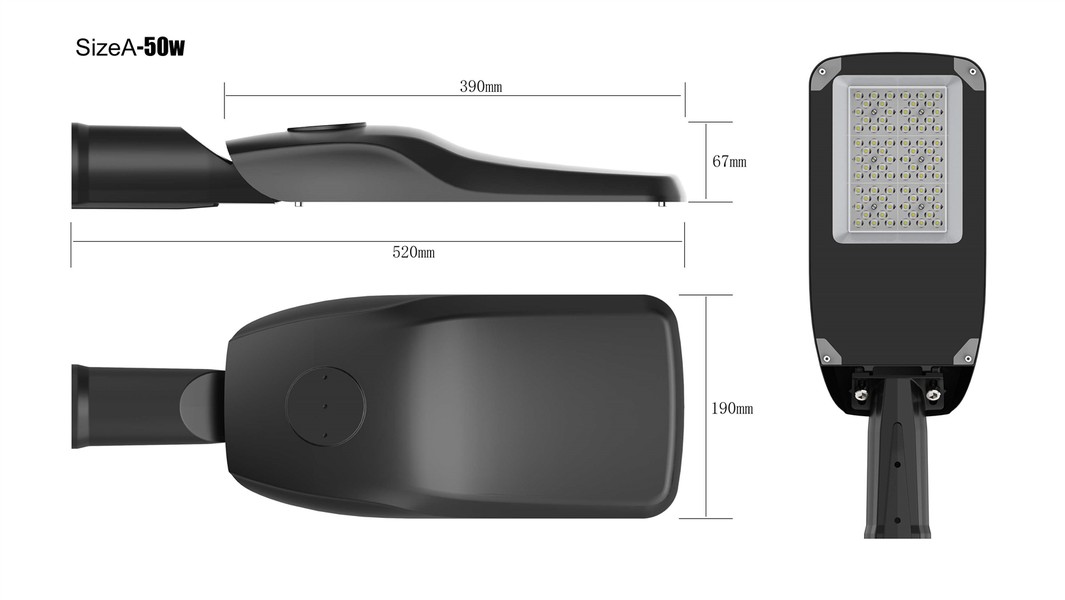

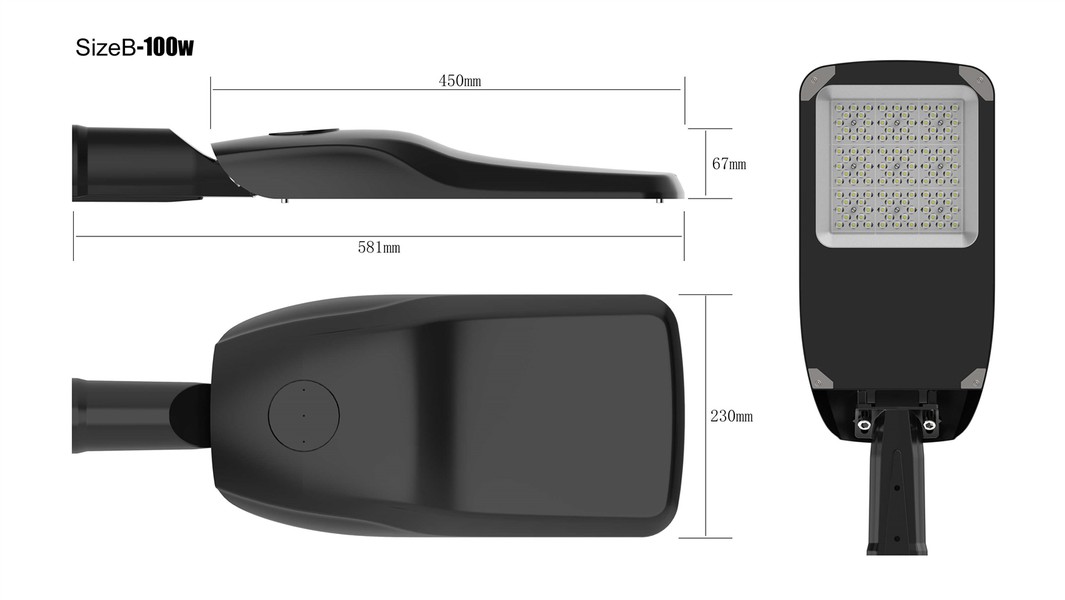

50W waterproof LED street light dimension drawing 100W waterproof LED street light size specification

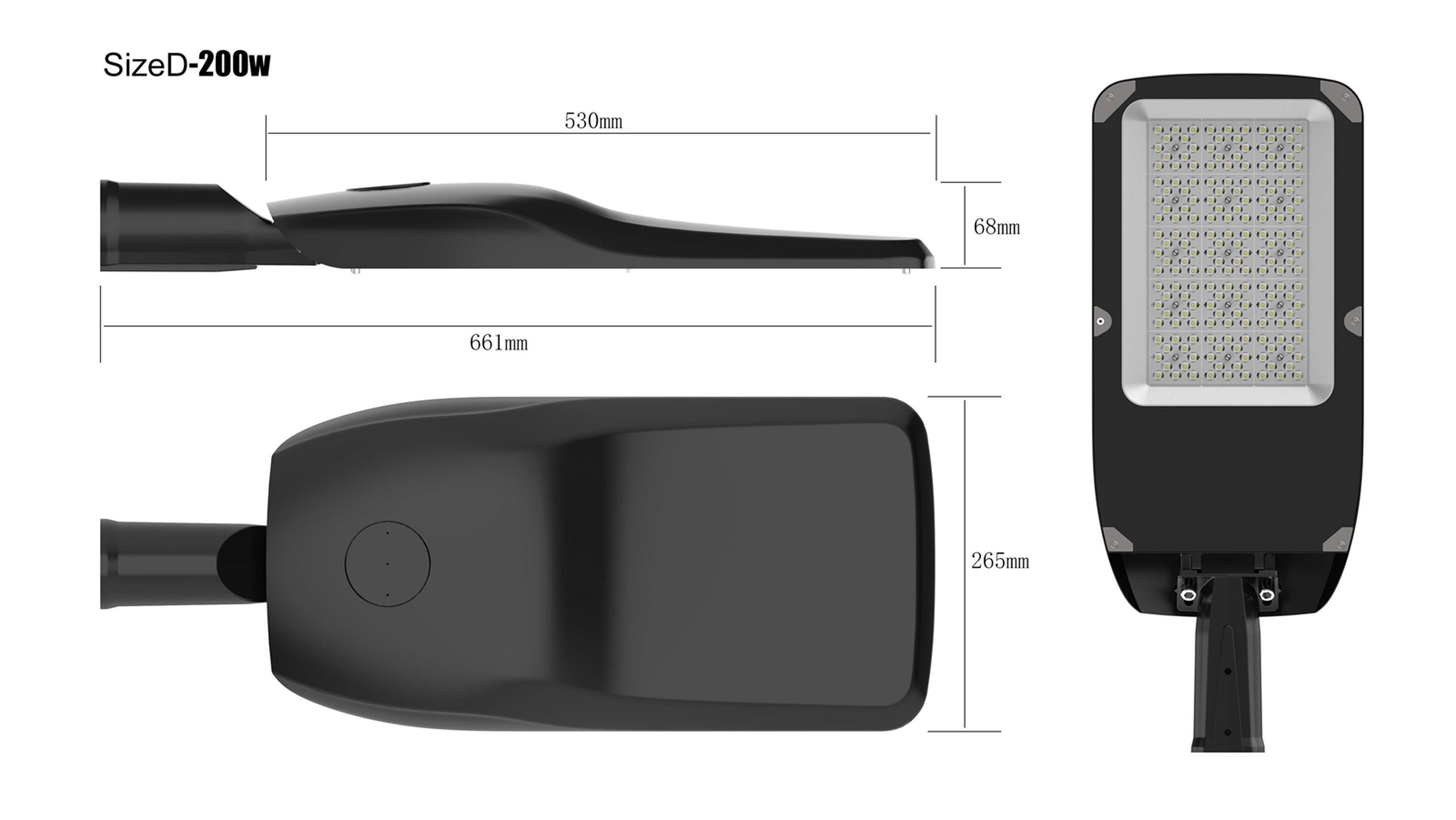

50W waterproof LED street light technical drawing 200W waterproof LED street light dimension diagram



This waterproof LED street light uses a high-transmittance glass panel with IK08 impact resistance, upgradable to IK09 with thicker glass. Simple European design, IP66 waterproof and optional light control. Black and gray colors available, durable and energy-saving for outdoor road lighting.



How to choose the right LED street light?



When selecting outdoor lighting, prioritize performance over low price. Choose high-efficiency Yard Street Light & LED street light for road and street lighting, which is an economical energy saving street lamp. Select IP66 waterproof die-casting aluminum street light housing for outdoor durability. Confirm proper power and size for street lighting projects, and choose professional suppliers supporting OEM LED street light customization and after-sales service.



Customization Service



We offer full customization for this waterproof LED street light:

  1. Impact upgrade: IK08 standard, customizable to IK09 with thicker glass
  2. Function: optional light control for intelligent outdoor use
  3. Color: black and gray for flexible project matching
  4. Power range: 30W–200W available
  5. Support OEM LED street light and project solutions

Application



  • Municipal roads and urban street lighting

  • Community, residential and backyard roads

  • Parks, industrial parks and campus lighting

  • Street light renovation and replacement projects

  • Parking lots and public outdoor lighting

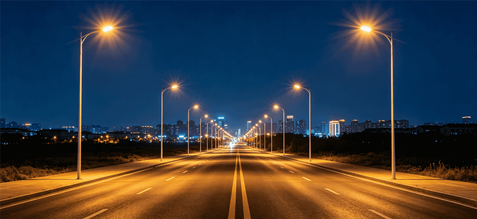

Waterproof LED street light for urban road

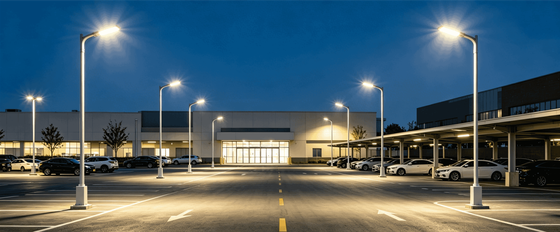

Waterproof LED street light for parking lot



FAQ



Q1: What is your warranty policy for LED street light?

A1: We offer 5 years warranty, free replacement for quality problems within warranty period.



Q2: Do you provide installation guide and technical support?

A2: Yes, professional installation manual and online technical guidance are provided for free.



Q3: What are your MOQ and shipping terms?

A3: Low MOQ for trial order of waterproof LED street light, we support FOB, CIF, DDP shipping terms.



Q4: Can you help with project solution for road lighting?

A4: Yes, we provide free lighting layout design and project quotation support.



Q5: How to handle after-sales quality issues?

A5: We have complete after-sales process, quick response and efficient replacement solution.
