LED Street Lights Outdoor High-Efficacy Frame Version

1. High-performance LED Street Lights Outdoor with up to 175LM/W high efficacy for maximum energy saving

2. Minimalist frame design, modern appearance ideal for urban landscapes

3. 8 IESNA standard light distributions for versatile road and site applications

4. Glare level G5 ensures safe driving and pedestrian visibility
5.Tool-free maintenance for LED Street Lights Outdoor with dual snap-lock rear cover, 1-minute quick replacement
6. Over 85% die-cast aluminum structure for efficient heat dissipation
7. IP65 waterproof & dustproof, IK09 impact resistant for harsh outdoor environments
8. Wide voltage input AC100–277V, power factor ≥0.95 for stable operation
9. Premium brand LEDs and drivers for long-term reliability
10. Full smart control support: 0–10V, PWM, Zigbee, LoRa, NB-IoT, photocell sensor
11. Lifespan over 50,000 hours for low maintenance cost

Technical parameters



Product Name	LED Street Lights Outdoor High-Efficacy Frame Version
Model Series	Frame Version
Power Range	30W–400W
Light Source	LED SMD 3030 / 5050
Luminous Efficacy	120–175 LM/W
Color Temperature	3000K / 4000K / 5000K / 5700K
CRI	Ra>70, R9>0
Input Voltage	AC100–277V 50/60Hz
Power Factor	≥0.95
IP Rating	IP65
IK Rating	IK09
Lens	92% high transmittance PC
Cover	5mm ultra-white tempered glass
Housing	Die-cast aluminum
Mounting Pole	φ50 / 60 / 70mm
Adjustable Angle	±15°
Operating Temperature	-20℃ ~ +55℃
Lifespan	>50,000 hours
Certifications	CE, LM79, LM80, ISO9001, SGS



Product Dimension



Power	Length (mm)	Width (mm)	Height (mm)	Mounting Pole
30W / 40W	487	185	101	φ50
50W / 60W	577	232	103	φ60
80W / 100W / 120W	627	271	103	φ60
150W / 180W / 200W / 240W	768	301	103	φ60
300W / 350W / 400W	943	401	116	φ60 / φ70



Installation Instructions





1. Align the waterproof connector of the LED Street Lights Outdoor with the lamp pole and insert firmly.

2. Fix the lamp body using hex socket screws.

3. Keep the lamp and pole horizontally aligned.

4. Adjust the lamp angle ±15° to achieve the ideal lighting effect.

5. Tighten the screws to 16NM torque.

6.Check all connections carefully before powering on the lamp.



Note: Disconnect the power before installation; make sure the voltage and power rating match the China LED Street Light.

Certifications & Quality Assurance



As a professional outdoor lighting manufacturer since 2002, we focus on strict quality control and international standard certifications for all our LED street light products. All our lamps are fully tested and certified to meet global project requirements.

View All Certifications



ISO9001 Quality Management System



SGS Authorized Test Reports



CE, LVD, EMC Certifications



LM79 & LM80 Performance Reports



IES Compliant Light Distribution Files

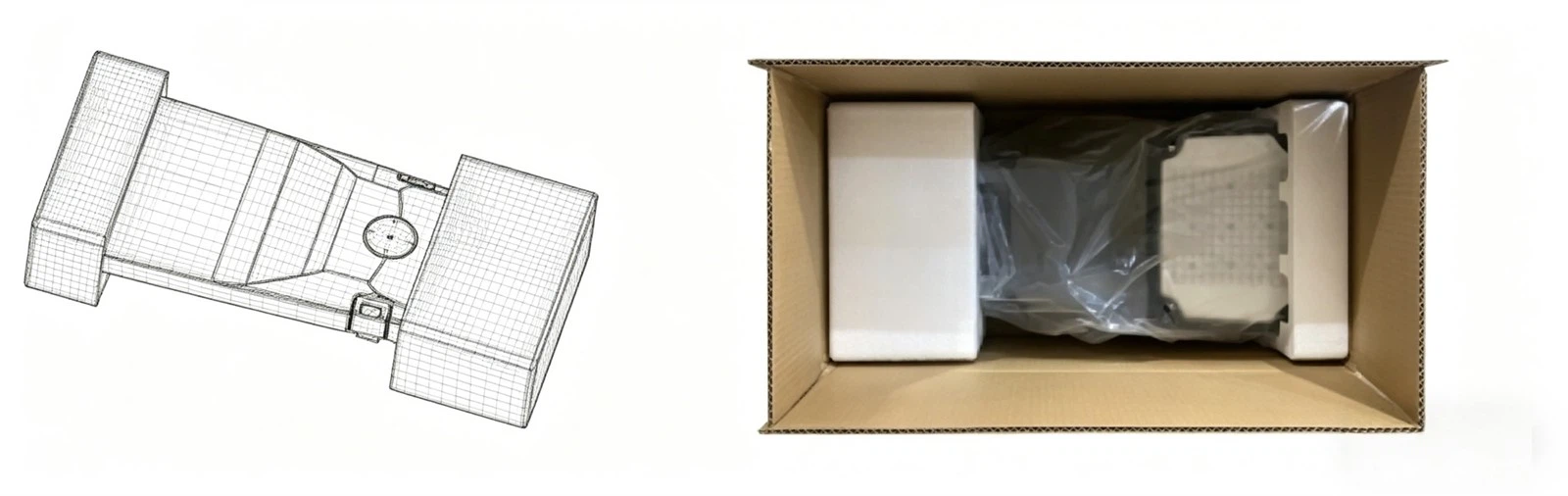

Packing Specification

Net Weight	Gross Weight	Carton Size (mm)	Qty/Carton
3.3kg	4.2kg	580×260×165	1
3.9kg	4.6kg	630×280×165	1
5.4kg	6.5kg	670×310×160	1
7.8kg	8.9kg	820×340×160	1
10.0kg	11.0kg	1000×430×160	1



• Individual box packaging

• Custom packaging & logo available for projects



FAQ



1. Can you provide OEM & ODM services for outdoor lighting products?

    Yes, we support full customization including logo, color, packaging, and electrical parameters to match your market and project demands.

2. What is your MOQ for OEM orders?

    We offer flexible MOQ for OEM cooperation. Small trial orders are acceptable, and we provide competitive pricing for largescale orders.

3. Can you support complete certificates for OEM projects?

    Yes, we can provide CE, LM79, LM80, ISO9001, and SGS certificates to meet customs and project inspection requirements.

4. Can you customize brand packaging for LED Street Lights Outdoor?

    Yes, we support customized cartons, logo printing, and label design to help you build your own brand in the global market.

5. What is the production lead time for mass OEM orders?

    Normally 15–25 working days, depending on order quantity and customization details. We guarantee ontime delivery for engineering projects.
